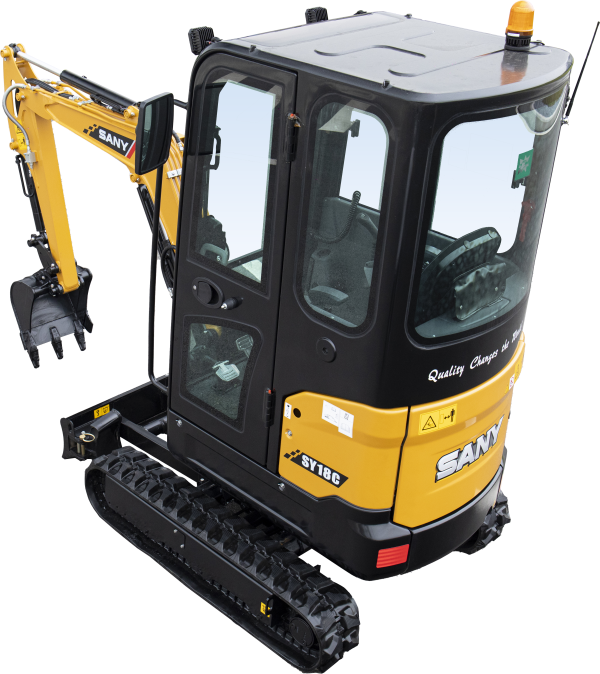

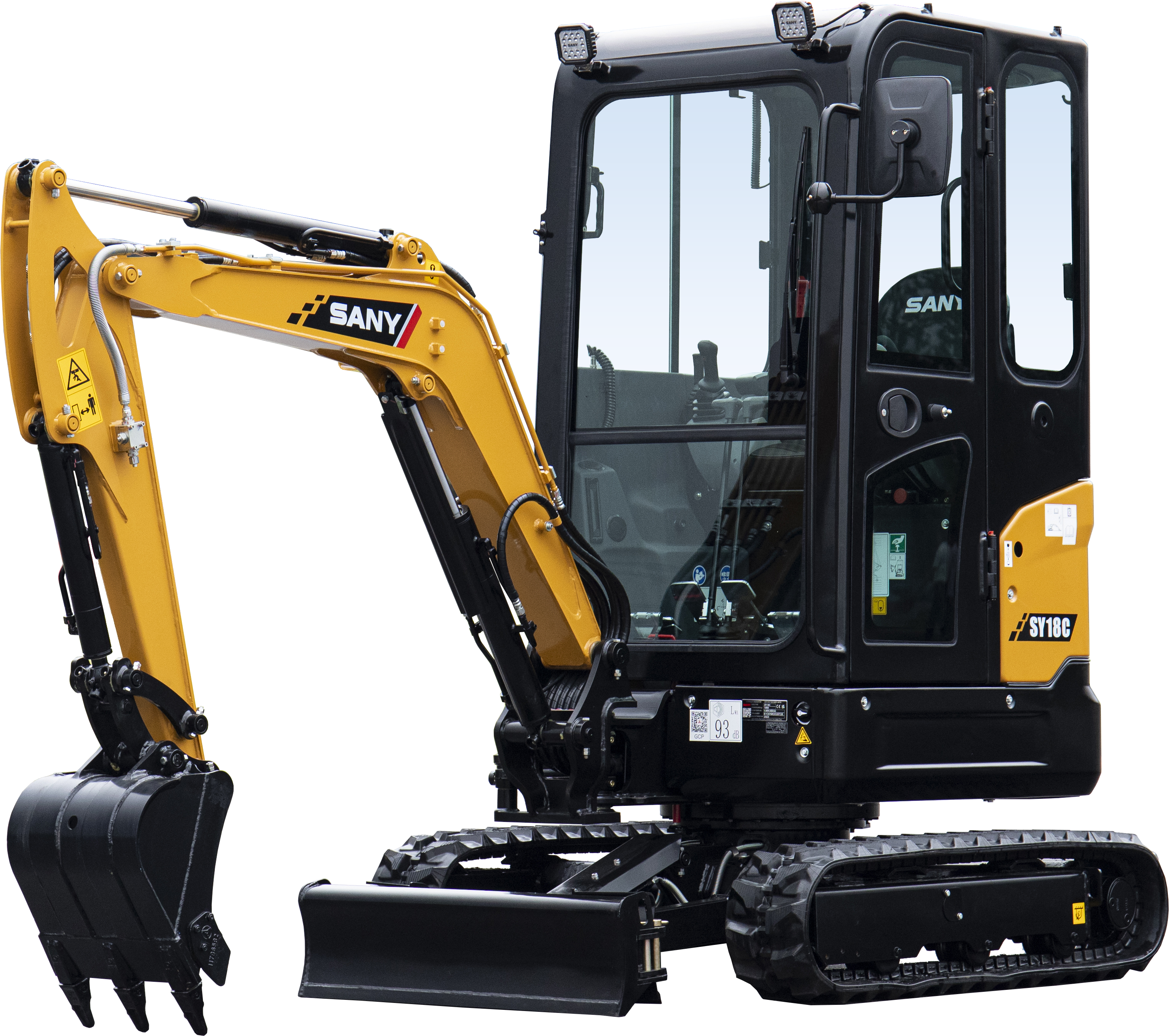

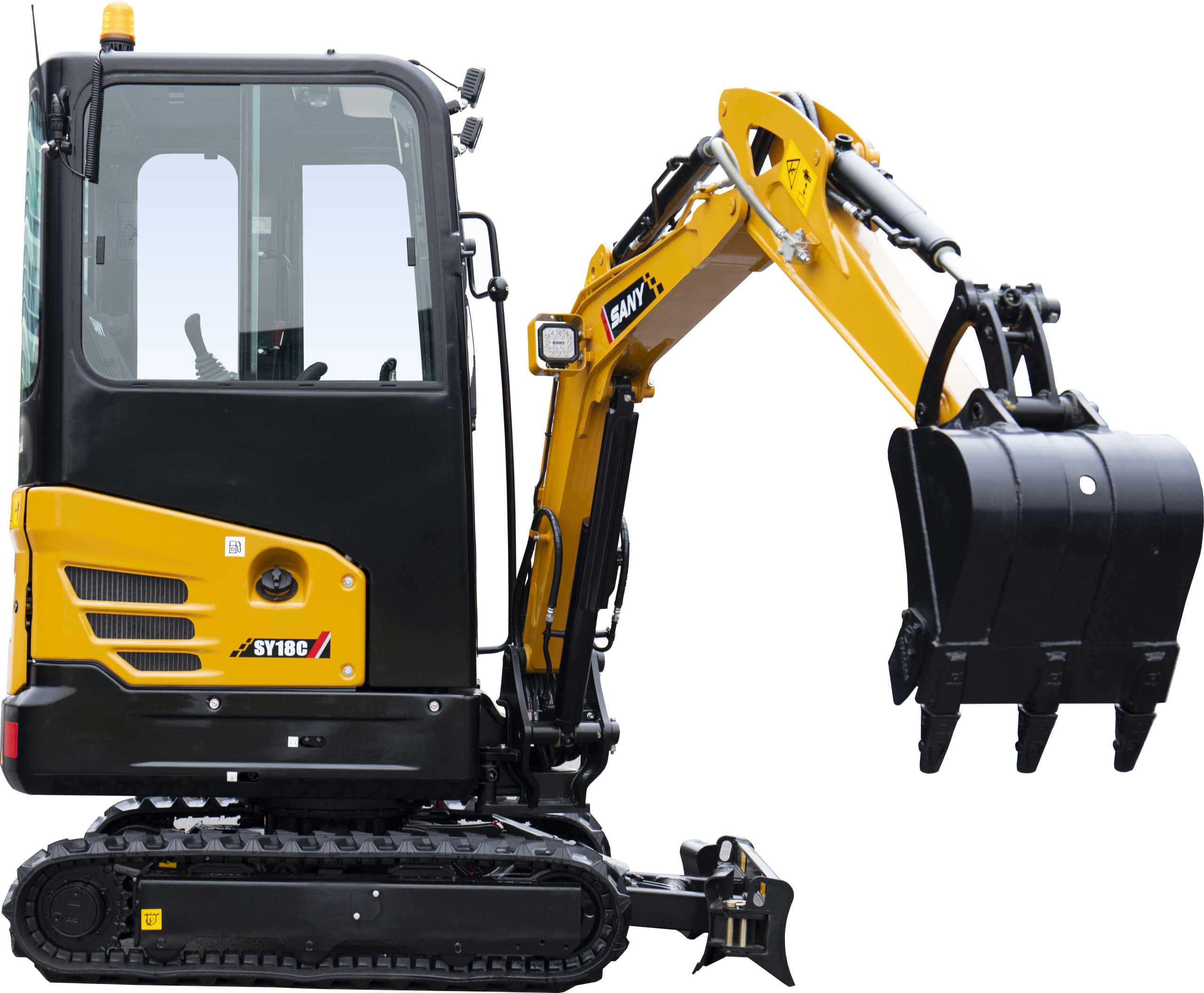

SY18C
SY18C - Image 2
SY18C - Image 3
SY18C - Image 4
SY18C - Image 5
SY18C - Image 6

SY18C

NOWHERE IS OUT OF REACH

TOP HIGHLIGHTS

+ Fully resilient – metal access panels

+ Adjustable track frame to suit all your requirements and increase stability

+ Protection for people and machines

+ The individual that already has everything

+ Your very personal little economic miracle

+ Absolute reliability – for peace of mind!

Class

Mini Excavators

Engine

Yanmar 3TNV80F

Operating mass

1850 kg

Download
message
Email
BENEFITS & FEATURES

QUALITY

Robust and durable – the most important protective elements and reinforcements as well as all cladding parts are made of high-quality metal, ideal for tough use in the construction industry

DIMENSIONS

Lightweight and compact – the SY18C fits easily onto standard car trailers and can be transported quickly to any location, even where space is tight

USER EXPERIENCE

Extremely comfortable – from easy access to the comfortable seat and the ergonomically designed controls, drivers can look forward to maximum comfort

SAFETY

No compromise – the SY18C is fully equipped for precise, safe working even in very confined application conditions. In addition to the standard rotating warning beacon, this also includes the battery disconnection switch and an emergency stop button

COMPONENTS

Quality as standard – the SY18C already comes with extensive features as standard. In addition, it features core components such as the engine and pumps from renowned brand manufacturers like Yanmar and Casappa

ECONOMY

Economically impressive – low procurement cost, economical consumption in compliance with emission standard 5 and straightforward maintenance which is attractive. When it comes to costs, SANY mini excavators really are mini
TECHNICAL SPECIFICATIONS
DIMENSIONS
Operating mass 1 850 kg
Standard bucket capacity 0.04 m³
Transport length 3 575 mm
Transport width 1 350 mm
Height over cabin/ROPS 2 420 mm
ENGINE
Rated power 14.6 kW 2 400 rpm
WORKING AREA
Max. digging depth 2 360 mm
Max. digging reach 4 000 mm
Min. swing radius 1 705 mm
Offset boom (L) 595 mm
Offset boom (R) 350 mm
HYDRAULIC SYSTEM
Max. oilflow 48 l/min
STANDARD EQUIPMENT
The most important protective elements and reinforcements as well as all cladding parts are made of robust metal. Robotic welded components guarantee a long service life under all conditions.
Chassis adjustable in width – from extremely narrow when manoeuvring to wide for the best possible stability
Impressively simple thanks to the joystick, which is easy to operate with high precision, and the clear display.
The intelligent control system adapts the pump capacity to the respective demand for greater efficiency and reduced fuel consumption.
In order to provide the best possible protection for both people and machines,devices such as cylinder guard plates are already integrated. It goes without saying that the platform is ROPS or FOPS certified
High-quality components from brand manufacturers guarantee top performance and a high level of operational safety – also for the extensive standard equipment. For example, these include the auxiliary control circuit, LED lighting and even the radio on cab machines
Their extremely simple handling and flexible, precise operation make the mini-excavators a highly productive tool for every job. As lightweight machines with compact dimensions, they can also be transported quickly and easily to the place of use.
