PRODUCTS

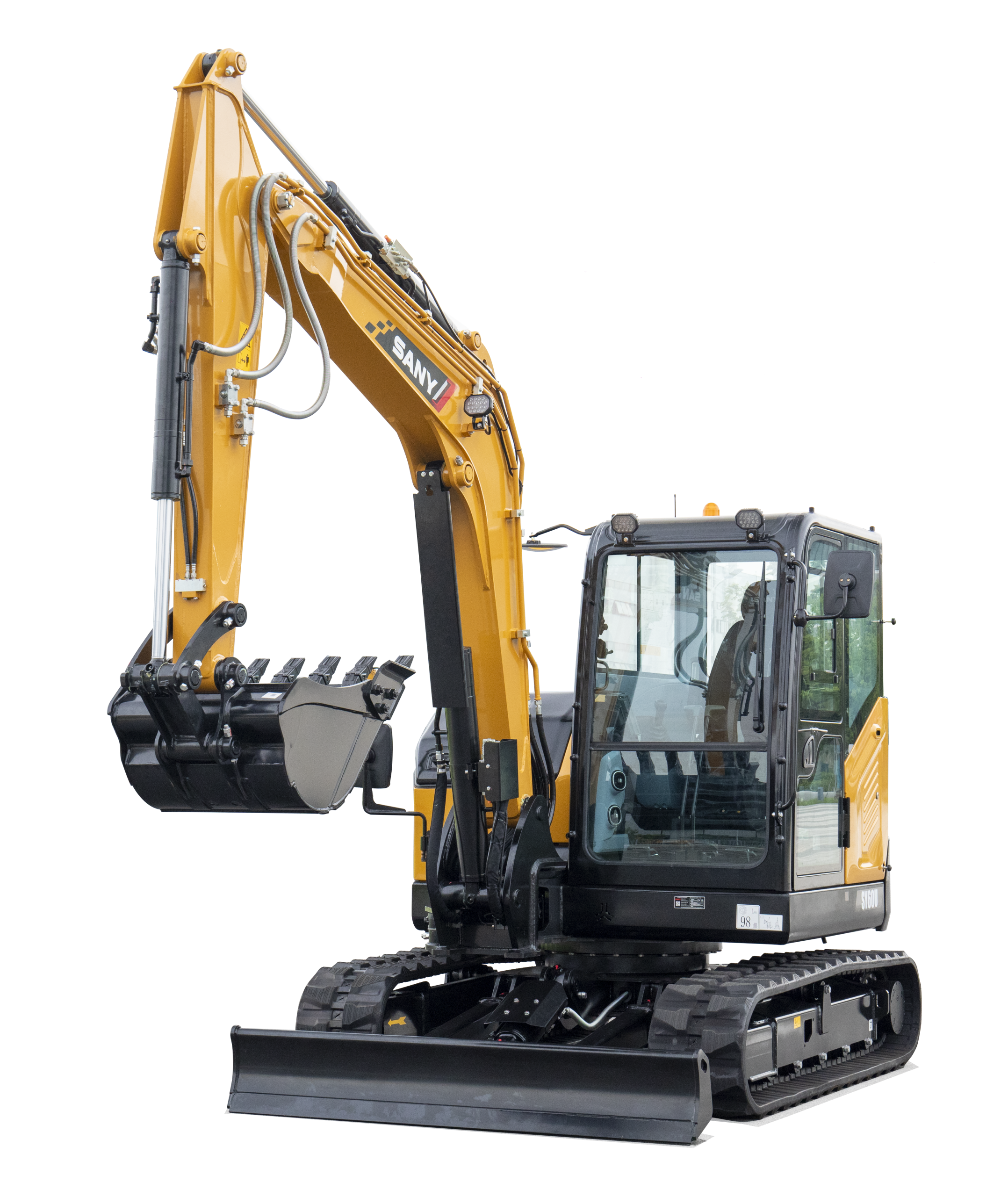

SY60U

Engine power

42.4kW/2000rpm

Bucket capacity

0.22 m3

Operating weight

6300kg

BENEFITS & FEATURES

New appearance

· All new eye-catching appearance · Select SY80U classical shape and new GB4 shape features

Keyless-Start，Control upgrade

· Application Smart Touch Screen and Power Management Module · Integrated keyless start and knob

Configuration upgrade

· Two sets of auxiliary pipelines, quick-change pipelines to meet customer accessory needs · Rear camera to expand the rear view of the excavator · Floating bulldozer

Comfort upgrade

· SY80U cab, improve sealing · Adopt new suspension seats, more comfortable

Proportional Contro

· Proportional auxiliary control to meet the needs of different attachments and precise control

Convenient maintenance

· The engine compartment and valve chamber are designed with maintenance doors, which is convenient for maintenance

TECHNICAL SPECIFICATIONS

DIMENSIONS
Tail Swing Radius	1350	kg
Standard bucket capacity	0.22	m³
Transport length	5830	mm
Transport width	2000	mm
Transport Height	2530	mm

ENGINE
Rated power	42.4	kW	2 000	rpm

WORKING AREA
Max. digging depth	5695	mm
Max. digging reach	6375	mm
Min. swing radius	2730	mm
Max. vertical wall digging depth	3130	mm
Max. reach at ground level	6375	mm
